SSL Certificate Installation on SonicWall

SSL Certificate Installation on SonicWall

After the certificate is issued, it must be installed on your appliance. Firstly, download your issued SSL certificate. For instructions on downloading your newly issued certificate from your 1Byte account, please refer to these step-by-step instructions and rename it to server.crt.

How to Install SSL Certificate on SonicWall

Note: Due to the peculiarity of the server, it is needed to use default file names. The router will identify the file without any issues:

Step 1

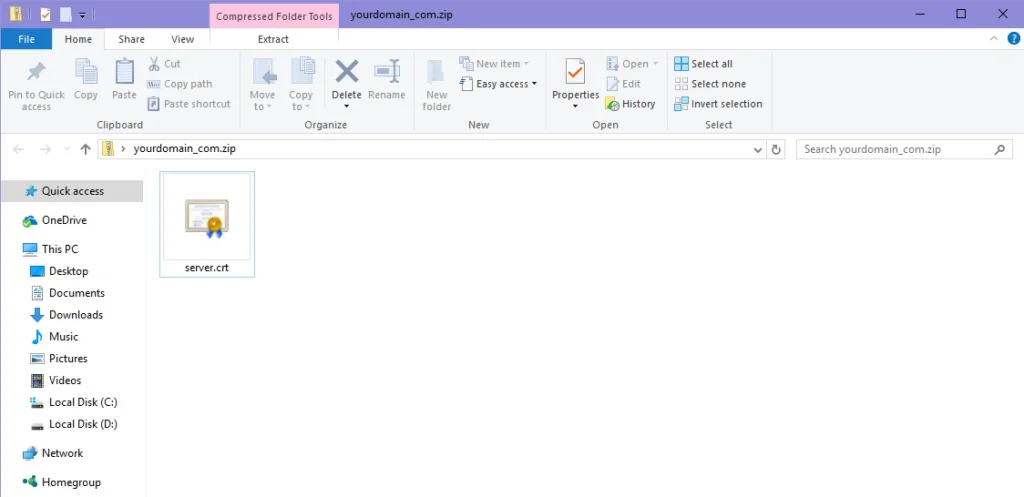

Create a .zip file with two files. Please take the .crt downloaded from the 1Byte Account panel and also, use server.key generated during CSR creation on your SSL-VPN appliance.

The easiest way to create a zip file is to copy both files into a specific folder, select these files, right-click on them, and then click Send to >> Compressed Folder.

Step 2

Log into the SonicWALL SSL-VPN appliance portal.

Step 3

After that, expand the System menu and click Certificates.

Step 4

Then it is needed to install CA certificates in order to make your website compatible in browsers.

Step 5

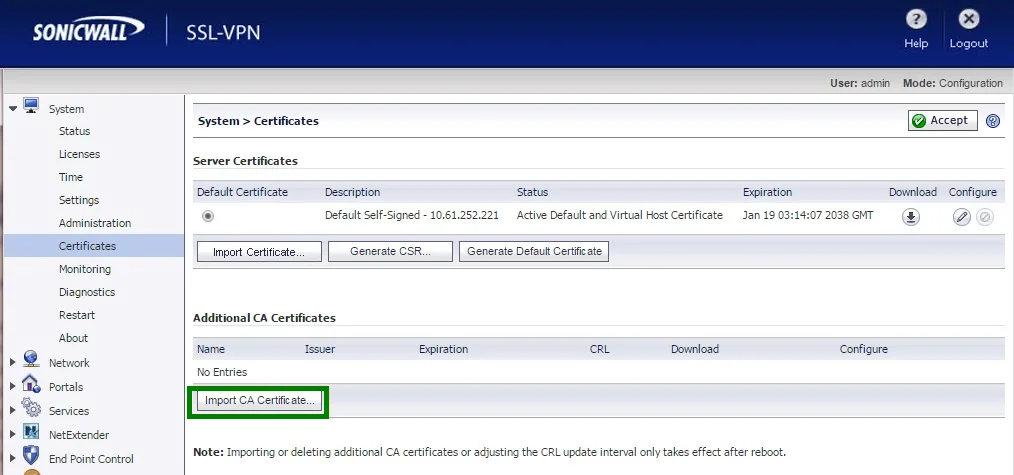

On the System >> Certificates page, in the Additional CA Certificates section, click Import CA Certificate:

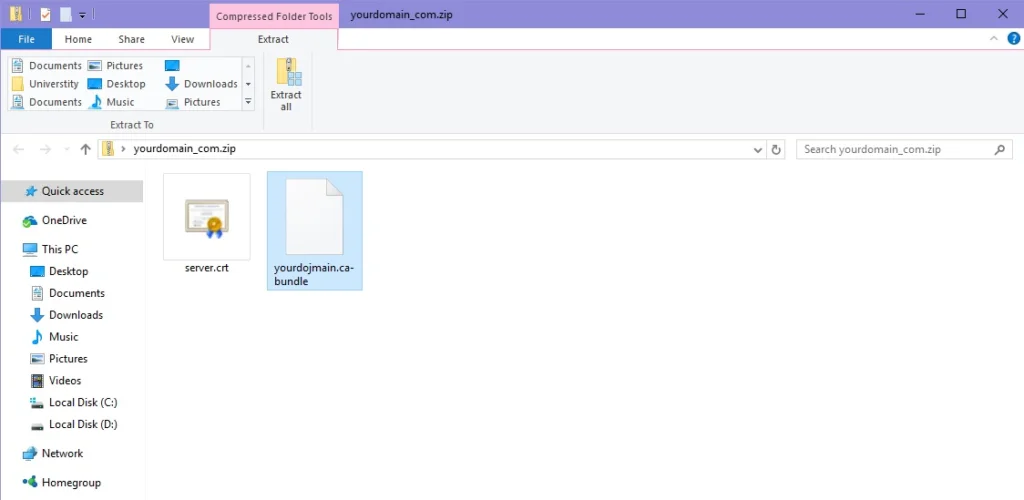

Please upload the file downloaded from the 1Byte Account Panel with the .ca-bundle extension.

Step 6

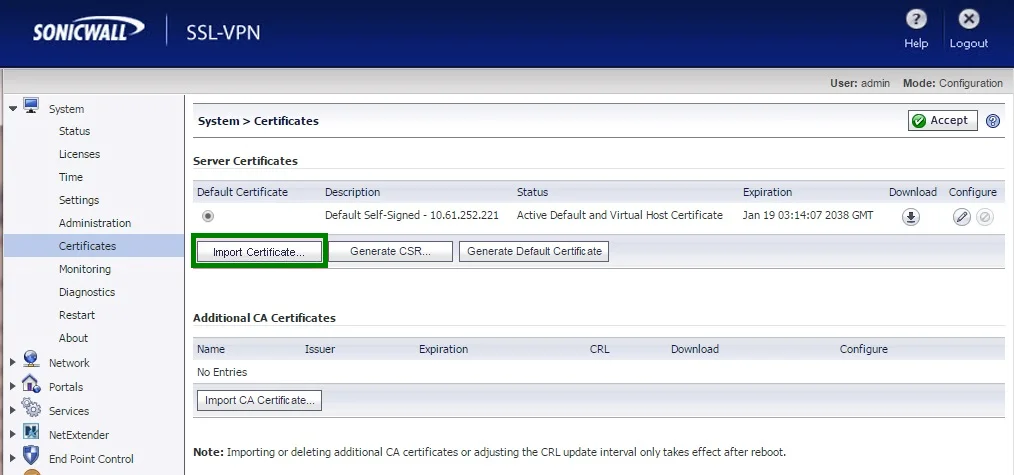

In the Server Certificates section, click Import Certificate.

Step 7

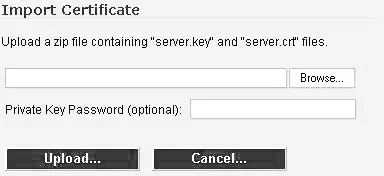

In the opened Import Certificate window, click Browse, locate and open the .zip file that you created.

Step 8

Click Upload:

Once it is imported, the certificate will appear in the Server Certificates list on the System Certificates page.

Step 9

And now you need to configure your SSL Certificate:

  • On the System >> Certificates page, in the Server Certificates section right near your SSL Certificate with the pending request, click the Configure icon.
  • At the next step, specify the password created during CSR generation.
  • Click Submit.

Step 10

Now it is needed to implement the changes:

  • In the System >> Certificates section, in the Server Certificates section, select the corresponding certificate.
  • On the top right of this page, click Apply.
  • If you are not prompted to restart your SonicWALL SSL-VPN appliance, restart it manually.

Step 11

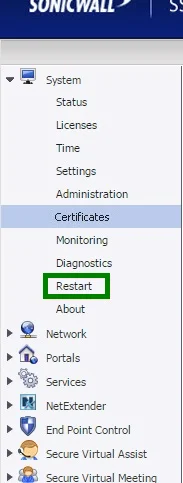

In order to restart the appliance, expand the System menu and then click Restart:

Step 12

The SSL Certificate has been successfully installed.

After the certificate is installed, you can check if it’s accurately installed using this tool.
